Truck Chassis Modification
At ESoliDesign, we recently completed a large-scale, milestone-based truck modification project that showcased our deep expertise in mechanical design and engineering documentation. The client approached us with a vision—backed by over 400 pages of unstructured reference material—and tasked us with turning that vision into detailed technical deliverables.

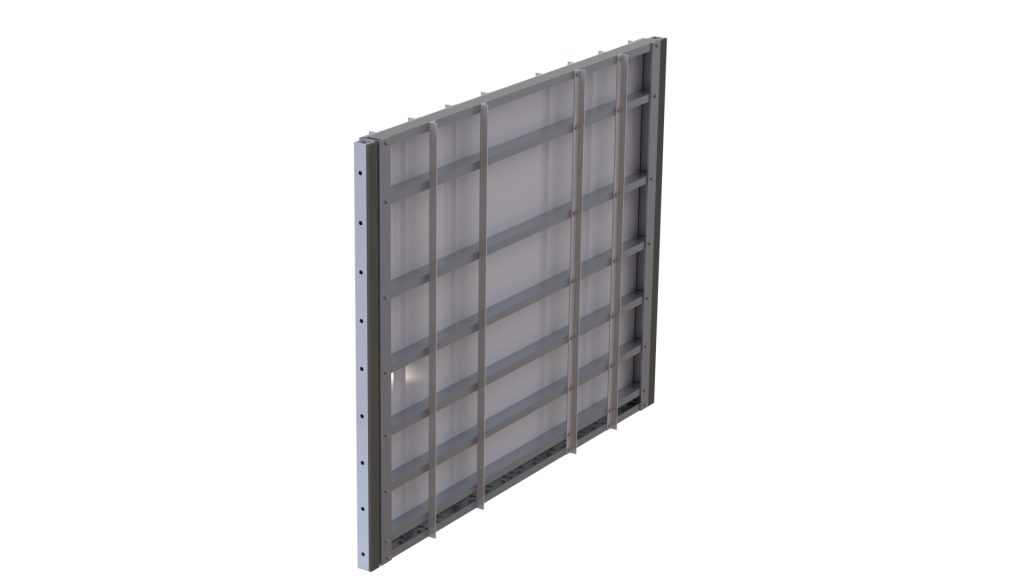

The 3D CAD model would be found in figure (1).
Project Scope & Deliverables
Our role involved the complete 3D modelling of custom steel and aluminium components, along with the development of comprehensive 2D/3D fabrication drawings. We provided:
- High-quality 3D models of all parts and assemblies
- Accurate 2D technical drawings suitable for fabrication
- Exported files in PDF, DWG, STEP, and DXF formats
- Fully detailed Bills of Materials (BOM) for all assemblies
- Welding annotations and weight specifications for all parts
- Ongoing support for drawing revisions and design updates
The project was delivered in three milestones:
- Milestone 1: Submitted 90 PDF drawings—44 2D part drawings (2 aluminium, 42 steel) and 46 3D assembly drawings (19 aluminium, 27 steel)
- Milestone 2: Integrated revisions and added detailed welding information to all assemblies
- Milestone 3: Delivered all files in required formats, including DXF files for 2D parts and final PDFs with BOMs and weights

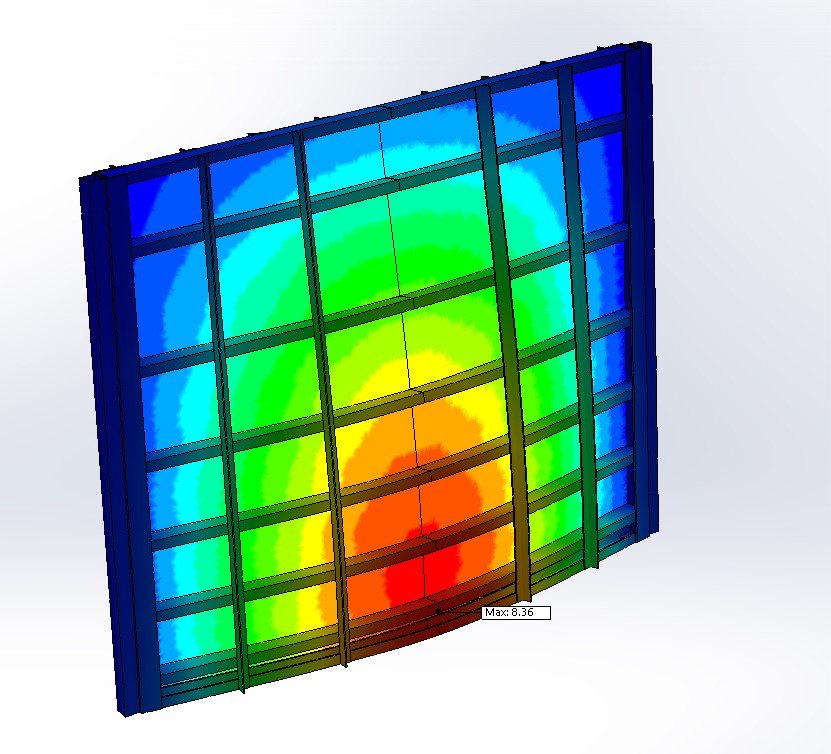

Figure (2)- Displacement distribution under hydrostatic pressure, mm
Figure (3)- Stress Spread under hydrostatic pressure, MPa
Client Feedback – Phase One
“ESoliDesign is by far the most skilled, highly professional partner I’ve ever worked with on Upwork. Their mechanical engineering expertise transformed my rough concepts into precise, functional designs. They interpreted nearly 400 pages of unstructured input and delivered beyond expectations. Throughout the milestones, they were responsive, efficient, and detail-oriented. I would strongly recommend ESoliDesign for any mechanical engineering work.”
Client Feedback – Phase Two
Following the success of Phase One, the client returned for a second engagement:
“Another perfectly delivered project! ESoliDesign’s broad technical skillset and ability to capture my vision ensured the project was completed to the highest standard—faster than expected. Their attention to detail and professionalism make them my go-to for any mechanical engineering, prototype, and design work.”
Whether your project involves full-scale product development or detailed component drawings, ESoliDesign is your trusted partner for precision, innovation, and results. Let’s bring your ideas to life with engineering you can rely on.
Partner with ESoliDesign for your next project.
Contact us today for custom-engineered solutions that are smart, safe, and built to last.
